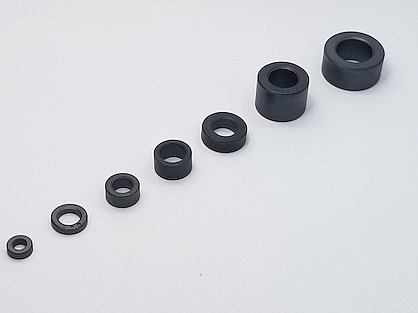

Toroidal Core

For EMI suppression on small conductors, Sintertech manufactures a complete line of extremely compact, high performance ferrite beads. They are often used on short, rigid or semi-rigid miniature conductors. They are uniquely suited for noise suppression on conductors carrying DC and AC, as well as digital or analog signals.

  • Internal dimensions from 4.6 mm to 15 mm
  • Precision finished smooth surfaces prevent damage to wire insulation
  • Extremely compact with small mass
  • Custom design available

  • Small diameter wires and conductors
  • Component leads of high gain/high bandwidth active device (e.g. Field effect or bipolar junction transistor)



# Device
A 9.1 ± 0.3
B 4.6 ± 0.3
C 3 ± 0.3
30 MHz ≥ 20
50 MHz ≥ 30
100 MHz ≥ 50
A 12.7 ± 0.4
B 7.6 ± 0.4
C 2.9 + 0.08/-0.18
30 MHz ≥ 13
50 MHz ≥ 21
100 MHz ≥ 39
A 12.7 ± 0.35
B 7.6 ± 0.35
C 6 ± 0.35
30 MHz ≥ 26
50 MHz -
100 MHz ≥ 45
A 14 ± 0.5
B 6.9 ± 0.5
C 15 ± 0.5
30 MHz ≥ 66
50 MHz -
100 MHz ≥ 115
A 16 ± 0.4
B 8 ± 0.4
C 13 ± 0.6
30 MHz ≥ 50
50 MHz ≥ 65
100 MHz ≥ 80
A 16 ± 0.5
B 8 ± 0.5
C 15 ± 0.6
30 MHz ≥ 53
50 MHz ≥ 68
100 MHz ≥ 95
A 16 ± 0.4
B 8 ± 0.4
C 15 ± 0.6
30 MHz ≥ 74
50 MHz ≥ 88
100 MHz ≥ 107
A 16 ± 0.4
B 8 ± 0.4
C 15 ± 0.6
30 MHz ≥ 74
50 MHz ≥ 88
100 MHz ≥ 107
A 18 ± 0.3
B 10.3 ± 0.3
C 6 ± 0.2
30 MHz -
50 MHz -
100 MHz ≥ 42
A 18 ± 0.5
B 10 ± 0.5
C 10 ± 0.5
30 MHz ≥ 39
50 MHz ≥ 46
100 MHz ≥ 60
A 18 ± 0.7
B 10 ± 0.7
C 10 ± 0.6
30 MHz ≥ 47
50 MHz ≥ 58
100 MHz ≥ 84
A 18 ± 0.4
B 10 ± 0.4
C 10 ± 0.6
30 MHz ≥ 64
50 MHz ≥ 77
100 MHz ≥ 96
A 18.45 ± 0.5
B 9.75 ± 0.4
C 10.25 ± 0.6
30 MHz ≥ 37
50 MHz ≥ 53
100 MHz ≥ 84
A 21 ± 0.5
B 12 ± 0.5
C 8 ± 0.5
30 MHz ≥ 28
50 MHz ≥ 38
100 MHz ≥ 55
A 21 ± 0.7
B 12 ± 0.7
C 15 ± 0.6
30 MHz ≥ 47
50 MHz ≥ 58
100 MHz ≥ 79
A 21 ± 0.5
B 12 ± 0.4
C 15 ± 0.6
30 MHz ≥ 60
50 MHz ≥ 73
100 MHz ≥ 92
A 25 ± 0.5
B 15 ± 0.5
C 12 ± 0.3
30 MHz ≥ 45
50 MHz ≥ 56
100 MHz ≥ 76
A 25 ± 0.5
B 15 ± 0.4
C 15 ± 0.5
30 MHz ≥ 42
50 MHz ≥ 53
100 MHz ≥ 79
A 25 ± 0.5
B 15 ± 0.4
C 15 ± 0.5
30 MHz ≥ 60
50 MHz ≥ 74
100 MHz ≥ 92
A 38.1 ± 0.4
B 19 ± 0.4
C 12.7 ± 0.25
30 MHz ≥ 62
50 MHz ≥ 72
100 MHz ≥ 100
A 40.6 ± 0.5
B 27.5 ± 0.5
C 15 ± 0.5
30 MHz ≥ 45
50 MHz ≥ 62
100 MHz ≥ 85
A 47 ± 0.7
B 27 ± 0.7
C 15 ± 0.4
30 MHz ≥ 62
50 MHz ≥ 77
100 MHz ≥ 103
