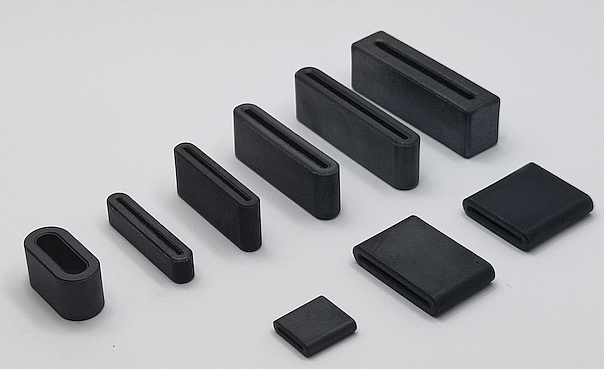

Flat Cores

For retrofit and post-assembly operation, Sintertech’s offer a selection of Flat components. These components provide excellent common mode EMI suppression on round flat assemblies.

  • Slot Length up to 44 mm and slot width up to 0.5 mm
  • Precision finished smooth surfaces prevent damage to wire insulation
  • Custom design available

  • Internal data cables for floppy disks and hard ribbon cables
  • Internal data cables between PC boards and data connectors
  • Ribbon cables with 8, 16, 32 or 64 bit digital signal bus



# Device
A 16 ± 0.6
B 5 ± 0.4
C 12 ± 0.4
D 11.5 ± 0.6
E 0.5 ± 0.3
30 MHz -
50 MHz -
100 MHz ≥ 55
A 19.2 ± 0.5
B 5.35 ± 0.3
C 8 ± 0.5
D 15 ± 0.5
E 0.8 ± 0.3
30 MHz -
50 MHz -
100 MHz ≥ 76
A 20 ± 0.7
B 9.5 ± 0.5
C 10 ± 0.6
D 15 ± 0.7
E 4.5 ± 0.5
30 MHz ≥ 21
50 MHz ≥ 32
100 MHz ≥ 58
A 20 ± 0.4
B 9.5 ± 0.4
C 10 ± 0.6
D 15 ± 0.4
E 4.5 ± 0.4
30 MHz ≥ 29
50 MHz ≥ 38
100 MHz ≥ 57
A 25.5 ± 0.5
B 18.0 ± 0.5
C 15.0 ± 0.7
D 17.5 ± 0.5
E 10.0 ± 0.5
30 MHz ≥ 46
50 MHz ≥ 56
100 MHz ≥ 73
A 28 ± 0.5
B 7.7 ± 0.3
C 6.8 ± 0.4
D 2.3 ± 0.4
E 1.5 ± 1.2
30 MHz ≥ 28
50 MHz ≥ 42
100 MHz ≥ 75
A 28 ± 0.7
B 7.7 ± 0.4
C 14.6 ± 0.6
D 23 ± 0.8
E 1.4 ± 0.4
30 MHz ≥ 39
50 MHz ≥ 50
100 MHz ≥ 72
A 32 ± 1.5
B 10.5 ± 0.5
C 15 ± 0.7
D 27 ± 1.5
E 5.5 ± 0.5
30 MHz ≥ 20
50 MHz ≥ 25
100 MHz ≥ 45
A 32 ± 0.8
B 7.75 ± 0.6
C 17 ± 0.5
D 27 ± 0.6
E 1 ± 0.3
30 MHz -
50 MHz -
100 MHz ≥ 110
A 33.5 + 0.2/-0.9
B 6.5 ± 0.5
C 8 ± 0.5
D 28.4 ± 0.9
E 1.4 ± 0.3
30 MHz ≥ 21
50 MHz ≥ 29
100 MHz ≥ 49
A 33.5 ± 0.9
B 6.5 ± 0.5
C 12 ± 0.5
D 28.4 ± 0.9
E 1.4 ± 0.3
30 MHz ≥ 26
50 MHz ≥ 38
100 MHz ≥ 66
A 33.5 + 0.2/-0.9
B 6.5 ± 0.5
C 12 ± 0.5
D 28.4 ± 0.9
E 1.4 ± 0.3
30 MHz ≥ 26
50 MHz ≥ 38
100 MHz ≥ 66
A 33.5 ± 0.9
B 6.6 ± 0.4
C 10 ± 0.5
D 28.4 ± 0.9
E 1.4 ± 0.25
30 MHz ≥ 23
50 MHz ≥ 34
100 MHz ≥ 58
A 37 ± 0.8
B 8 ± 0.8
C 18.25 ± 0.5
D 27 ± 0.6
E 1 ± 0.3
30 MHz -
50 MHz -
100 MHz ≥ 110
A 40.0 ± 1.0
B 6.5 ± 0.6
C 12.0 ± 0.6
D 34.8 ± 1.0
E 1.4 + 0.6/-0.3
30 MHz ≥ 24
50 MHz ≥ 33
100 MHz ≥ 55
A 40.0 ± 1.0
B 6.5 ± 0.6
C 12.0 ± 0.6
D 34.8 ± 1.0
E 1.4 ± 0.4
30 MHz ≥ 25
50 MHz -
100 MHz ≥ 62
A 40 ± 1.0
B 10 ± 0.5
C 12.5 ± 0.6
D 32.33 ± 0.8
E 2 ± 0.3
30 MHz ≥ 32
50 MHz ≥ 42
100 MHz ≥ 63
A 49.6 ± 0.7
B 6.5 ± 0.3
C 12 ± 0.3
D 44 ± 0.7
E 1.3 + 0.6 /-0.3
30 MHz 25 MHz ≥ 22
50 MHz 25 MHz ≥ 22
100 MHz ≥ 55
